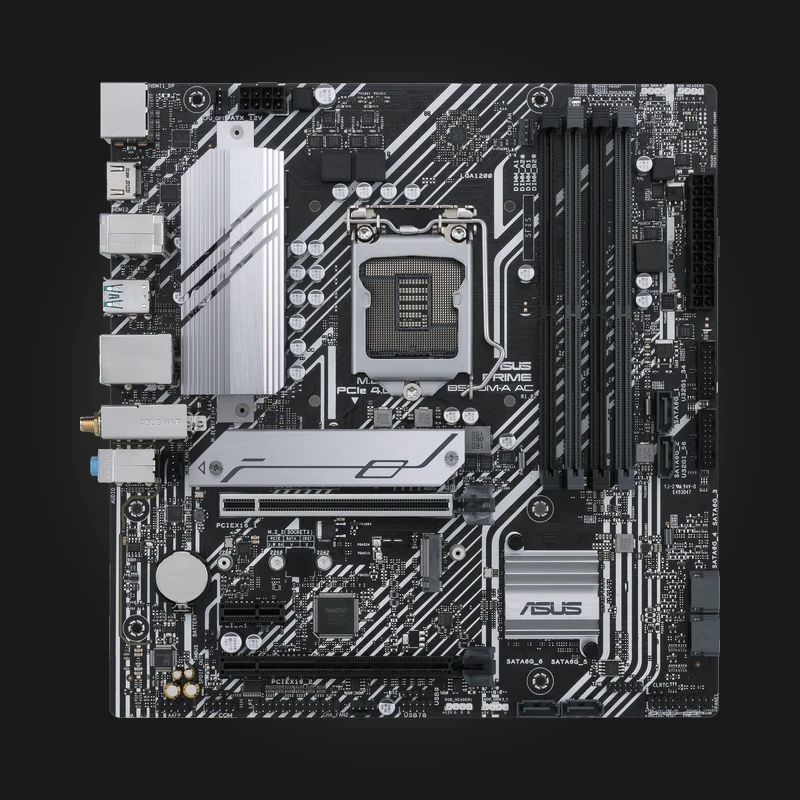

ASUS PRIME B560M-A AC

ASUS PRIME B560M-A AC — Intel B560 LGA1200 micro-ATX motherboard with Wi-Fi 5

ASUS PRIME B560M-A AC is a Micro-ATX motherboard based on the Intel B560 chipset for 10th- and 11th-generation Intel processors. It features four DDR4 slots, two M.2 slots, six SATA ports, Intel I219-V Gigabit Ethernet and a Wi-Fi 5 module with Bluetooth 5.0. The upper M.2 slot and PCIe 4.0 mode require an 11th-generation processor; with a 10th-generation processor, the primary graphics slot runs in PCIe 3.0 mode.

• Chipset: Intel B560
• Socket: LGA1200
• Processor support: 10th/11th Gen Intel Core; 10th Gen Pentium Gold and Celeron
• Form factor: Micro-ATX, 24.4 × 23.4 cm
• Memory: 4 × DIMM DDR4, up to 128 GB, dual-channel
• Storage: 2 × M.2, 6 × SATA 6Gb/s
• Upper M.2 slot: PCIe 4.0 ×4, Intel 11th Gen only
• Second M.2 slot: PCIe 3.0 ×4 / SATA; SATA mode disables SATA_2
• Ethernet: Intel I219-V 1Gb Ethernet
• Wireless connectivity: Wi-Fi 5 (802.11ac), Bluetooth 5.0
• Display outputs: 2 × HDMI, 1 × DisplayPort
• Rear USB ports: 2 × USB 3.2 Gen 2 (Type-A + Type-C), 4 × USB 2.0

Manufacturer link: www.asus.com
