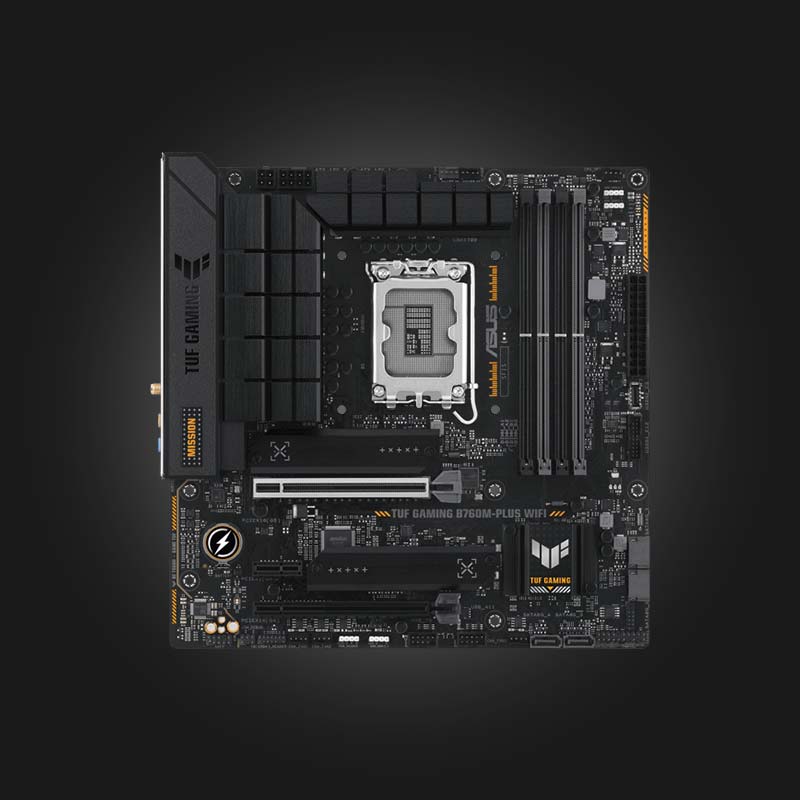

Asus Tuf B760M-Plus 4DDR5

• Socket Type: LGA 1700

• Chipset: Intel B760

• Memory Support:

  • Type: DDR5

  • Slots: 4 x DIMM

  • Max Capacity: 128GB

  • Speeds: Up to 7200+(OC) MHz

  • Architecture: Dual-channel

  • XMP Support: Yes

• Expansion Slots:

  • 1 x PCIe 5.0 x16

  • 1 x PCIe 4.0 x16 (supports x4 mode)

  • 1 x PCIe 4.0 x1

• Storage:

  • M.2 Slots: 2 x PCIe 4.0 x4

  • SATA Ports: 4 x 6Gb/s

• Networking:

  • Ethernet: Realtek 2.5Gb

• USB Ports:

  • Rear I/O:

    • 1 x USB 3.2 Gen 2×2 (Type-C)

    • 2 x USB 3.2 Gen 2

    • 3 x USB 3.2 Gen 1

    • 2 x USB 2.0

  • Internal Headers:

    • 1 x USB 3.2 Gen 2 (Type-C)

    • 1 x USB 3.2 Gen 1

    • 2 x USB 2.0

• Audio:

  • Codec: Realtek 7.1 Surround Sound HD

  • Features: Jack-detection, Multi-streaming, Front Panel Jack-retasking

  • Playback: Up to 24-Bit/192 kHz

• Display Outputs:

  • 1 x HDMI

  • 1 x DisplayPort

• Cooling:

  • VRM and PCH heatsinks

  • Hybrid fan headers

  • Fan Xpert 2+ software

• Customization:

  • RGB: Aura Sync support with Addressable Gen 2 and RGB headers

• Form Factor: Micro ATX (24.4 cm x 24.4 cm)Supreme IT MallQuiet PC+1Supreme IT Mall+1

⚙️ Additional Features

• Power Connectors:

  • 1 x 24-pin Main

  • 1 x 8-pin +12V

  • 1 x 4-pin +12V

• Internal I/O Ports:

  • 1 x Addressable Gen 2 header

  • 1 x Aura RGB header

  • 1 x Clear CMOS header

  • 1 x COM Port header

  • 1 x Front Panel Audio header (AAFP)

  • 1 x S/PDIF Out header

  • 1 x Speaker header

  • 1 x SPI TPM header (14-1pin)

  • 1 x 10-1 pin System Panel header

• Security:

  • TPM (Trusted Platform Module) support via SPI TPM header

• Software Suite:

  • Armoury Crate

  • Aura Sync

  • Fan Xpert 2+

  • AI Suite 3

  • DIGI+ VRM

  • PC Cleaner

  • ASUS CPU-Z

  • Norton 360 Deluxe (60 Days Free Trial)

  • WinRAR
